VXXT6RSST | 6 1/2" Visual Performance Extreme Single Stereo 2-Way In-Ceiling Outdoor Speaker (Each) - Paintable White

Brand: Sonance
Product Code: VXXT6RSST
Categories:  In-Ceiling Speakers , Outdoor Speakers

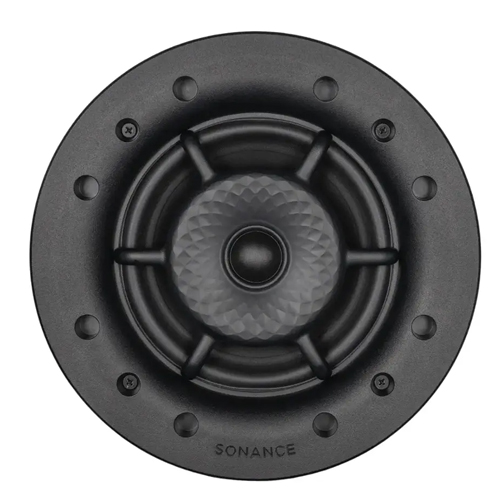

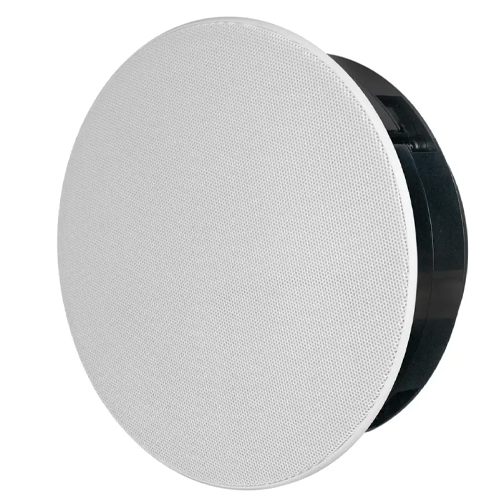

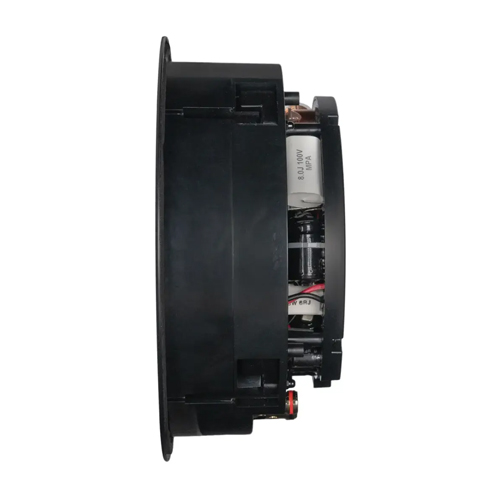

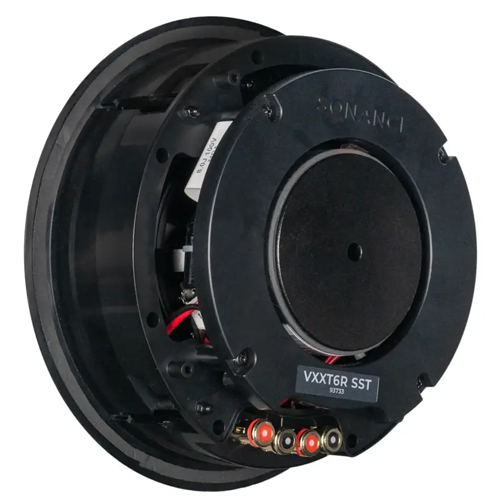

6 1/2" Visual Performance Extreme  Single Stereo 2-Way In-Ceiling Outdoor Speaker (Each) - Paintable White

The VXXT6R SST offers rich stereo performance from a single, round in-ceiling speaker, perfect for extreme environments with limited speaker locations. Its IP66-rated, dual voice coil design includes the Sonance XPC (Extreme Post Capture) grille retention system, and comes in round or square, micro trim or trimless bezel options to disappear into the ceiling. Trimless grille and square grilles optional, sold separately.

Specifications:

Speaker Tweeter
1.0" (25mm) Dual voice coil, waterproof cloth dome, Ferrofluid-cooled, acoustic back chamber

Speaker Woofer
6.5" (165mm) Dual voice coil, polypropylene cone, Santoprene surround

Frequency Response (+/- 3db)
45Hz - 20kHz +/-3dB

Power Handling (RMS)
5 watts minimum; 125 watts maximum

Sensitivity
89dB (2.83V/1m)

Nominal Impedance (Ohms)
8 Ohms

Dispersion
Sinusoidal Textured Waveguide

Dimensions (Diameter x D)
9.17" x 3.74" (232.92mm x 95.0mm)

Cut-Out Dimensions (Diameter)
8.25" (209.55mm)

Mounting Depth
3.62" (91.95mm)

Weight
5.4 lbs. (2.45kg)

User Manual

Manual

Data Sheet

Cut-Sheet
