Power and processing:

• 9-channel amplifier
• 150 watts per channel into 8 ohms (20-20,000 Hz) at 0.06% THD, with 2 channels driven
• High slew rate design for clear, consistent performance across a wide frequency range
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos® and DTS:X™ processing for use with in-ceiling or "height" speakers for enveloping overhead sound effects
  • Dolby Atmos Height Virtualization creates three-dimensional effects without height speakers
• Cinema DSP HD3 adds richness and depth to music and movie soundtracks
• Surround:AI™ technology analyzes your content and creates optimal surround effects in real time
• H-shaped cross frame adds additional stability to the chassis while reducing vibrations
• YPAO (Yamaha Parametric Room Acoustic Optimizer) automatic speaker calibration
  • Included microphone helps fine-tune your system to best match your room's acoustics
  • R.S.C. (Reflected Sound Control) with multipoint measurement helps deliver smooth, well-balanced surround sound across different seating positions

Digital and streaming music options:

• Built-in dual-band Wi-Fi for listening to music from a networked PC, free internet radio, and music services
• MusicCast wirelessly connects compatible Yamaha components together for seamless whole-home audio
  • Includes support for Pandora®, SiriusXM, and Spotify® (subscription required for some services)
  • Free MusicCast app offers easy Wi-Fi control, settings adjustments, and music selection and playback
• Works with Amazon Alexa and Google Assistant voice control devices
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®
• Built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers

Multi-room audio:

• Three-room/three-source output
  • Amp assign function lets you use select speaker outputs in different configurations like bi-amping the front speakers, or for use in Zone 2 or 3
  • Using powered 2nd-room output allows 7.2-channel sound in main room
  • Cannot select different USB/Bluetooth/network sources for each zone
• Zone 2 and 3 stereo preamp outputs for use with optional external amplifiers

HDMI features:

• HDMI 2.1 audio/video switching: 7 in, 3 out
  • All HDMI connections support support 8K/60Hz and 4K/120Hz video content
  • HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
  • HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
  • Supports HDR10, HDR10+, HLG, and Dolby Vision®
• gaming-optimized video processing technologies for a smooth, lag-free gaming experience
  • Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM)
• Supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

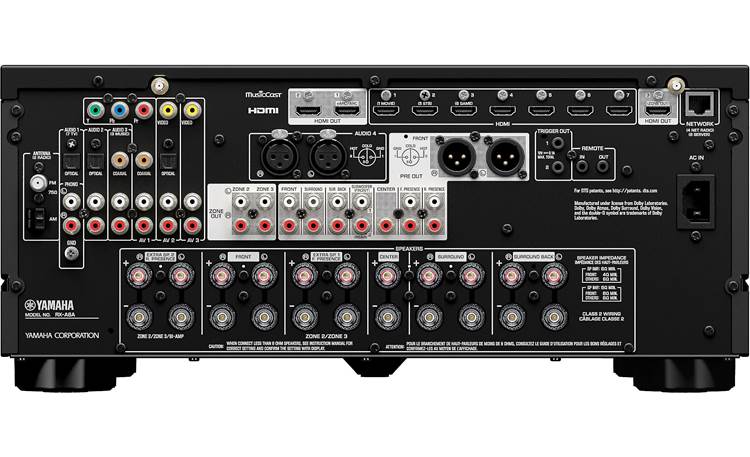

Other connections:

• Analog video inputs: 2 composite, 1 component
• Digital audio inputs: 3 Toslink optical, 2 coaxial
• 5 analog stereo RCA audio inputs
• MM (moving magnet) phono input for connecting a turntable
• Stereo balanced XLR connections: 1 input, 1 output
• Front-panel USB port for audio playback from USB flash drives
• 11.2-channel RCA preamp outputs
  • Includes 2 line-level mono subwoofer outputs
• Outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Front Presence L/R, Rear Presence L/R)
• Receiver can power a maximum of 9 channels at once
• Full-sized front-panel headphone jack

Dimensions and other info:

• Free MusicCast app lets you use your Apple® or Android™ device as a Wi-Fi remote
• Handheld remote control included
• 17-3/16"W x 7-1/2"H x 18-3/16"D (10-11/16"H with Bluetooth and Wi-Fi antennas raised)
• Weight: 41.2 lbs.
• Warranty: 3 years (5 years with Yamaha account creation and model registration)
