EVSP12SC | 4K HDMI 1×2 Splitter with EDID and Scaling
Brand:
Vanco
Product Code:
EVSP12SC
Categories:
Splitters
Share:

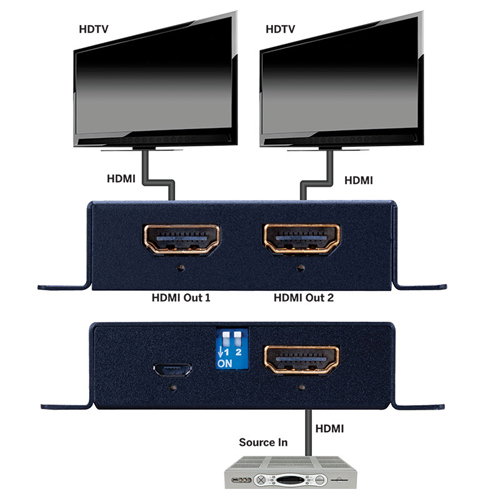

Splits a single 4K HDMI source to two other displays.
- Transmits audio and video from a single source to 2 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
- Supports 4K and 1080p resolutions simultaneously; downscales to 1080p for lower resolution displays while maintaining 4K on other outputs
- Supports up to 4K@60Hz with 8 bit YCBCR and 4:4:4 color sampling
- Supports up to 4K@60Hz with 10 bit YCBCR, 4:2:0 color sampling and HDR
- HDCP 2.2 and 1.4 compliant
- Wide frequency range: 25MHz~600MHz
- High bandwidth:18Gbps
- Features EDID management
- Micro-USB firmware update for expanding compatibility
- TAA Compliant
- Dimensions: 3.75” W x 2.25” H x 1.6” D
Package Contents:
EVSP12SC 4K HDMI 1×2 Splitter
DC 5V Power Supply
Product Manual
User Manual
Manual
Data Sheet
Cut-Sheet
YouTube Video
