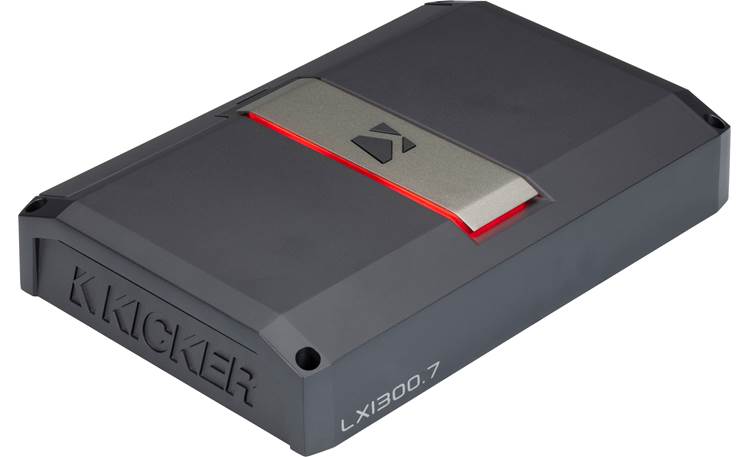

LX-Series 7-channel amplifier with digital signal processing — 125 watts RMS x 4 + 65 watts RMS x 2 at 4 ohms + 700 watts RMS x 1 at 1 ohm

Product highlights:

• 7-channel car amplifier with digital signal processing
  • 125 watts RMS x 4 + 65 watts RMS x 2 + 300 watts RMS x 1 at 4 ohms
  • 150 watts RMS x 4 + 65 watts RMS x 2 + 550 watts RMS x 1 at 2 ohms
  • 250 watts RMS x 2 bridged at 4 ohms + 130 watts RMS x 1 bridged at 4 ohms + 700 watts RMS x 1 at 1 ohm
• Class D amp technology
  • frequency response: 20-20,000 Hz
• channel gain knobs with clip lights
• adjustable RGB LED accent lighting and reversible center panel with Kicker logo

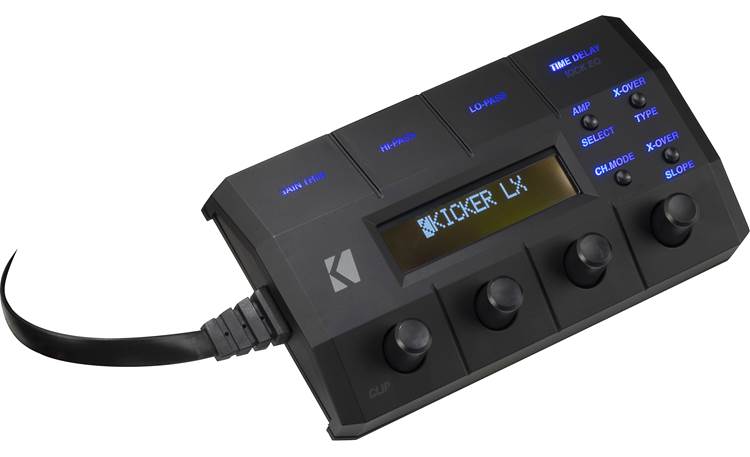

LXCC Control Center:

• plug in for amp setup only — unplug during normal operation
  • dimensions: 7.17"W (incl cord) x 1.2"H x 3.38"D with 39" cable
• LCD screen with 4 function/adjustment controls and 4 option selectors
• displays amplifier ID, system voltage, amplifier temperature (C°)
• Gain Trim
  • fine-tune channel gains for balance: -9 to +3 dB
• Hi-Pass
  • adjustable frequency: 20-5000 Hz for AMP 1-3; 10-80 Hz, 24 dB/oct (subsonic filter) for SUB
  • selectable crossover type: Linkwitz-Riley or Butterworth
  • selectable crossover slope: 12, 18, or 24 dB/octave
• Lo-Pass
  • adjustable frequency: 40-5000 Hz for AMP 1-3; 40-160 Hz for SUB
  • selectable crossover type: Linkwitz-Riley or Butterworth
  • selectable crossover slope: 12, 18, or 24 dB/octave
• Time Delay
  • adjustable delay time for AMP 1-3 left channels: milliseconds
  • switchable phase for SUB
  • adjustable KickEQ+ parametric bass boost for SUB: 0-6 dB at 20-80 Hz, 1-5 bandwidth
• Channel Mode
  • select Stereo, Mono (L+R), or Mono (L-R)

LXRC wired remote control:

• plug in for normal operation — unplug during amp setup
• functions include subwoofer volume control
• clip indicator LED
• SHOCwave2.0T sub-harmonic bass restoration
• graphic battery voltage meter
• controls RGB LED brightness

More info:

• compatible with start-stop vehicle systems

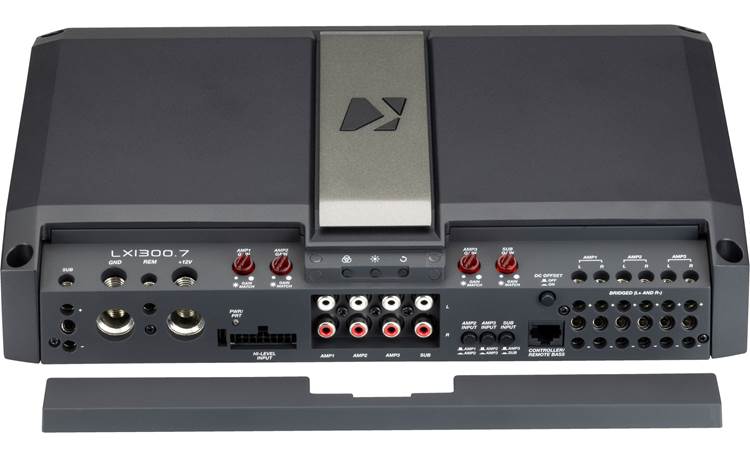

• preamp and speaker-level inputs
  • speaker wire adapters included
  • speaker-level inputs handle up to 40V (400W)
  • signal-sensing turn-on with speaker-level input
• wiring, fuse, and hardware not included with amplifier
  • 1/0-gauge amp wiring kit with fuse or 1/0-gauge power and ground leads with a 150-amp fuse recommended
• dimensions: 12.63"W x 2.43"H x 8.42"D

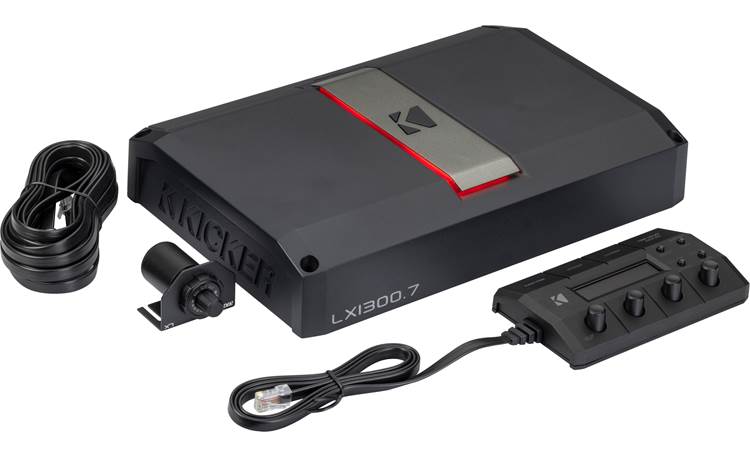

What's in the box:

• 7-Channel amplifier
• LXCC Control Center with attached 39" cord (terminated in an RJ-45 connector)
• LXRC Remote bass control with attached mounting bracket
• 19.5' Remote bass control cable (terminated in RJ-45 connectors on both ends)
• 10" Speaker-level input harness
• Four 1-3/8" screws
• Two 3/8" screws
• 3mm Allen key
• Owner's manual
• Power chart
• Power certificate
